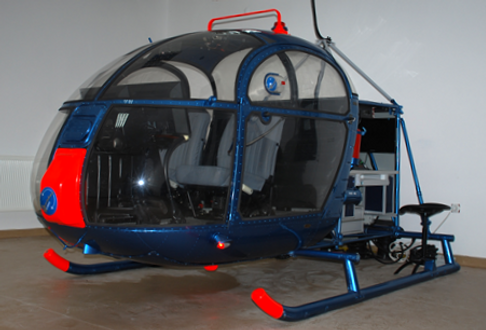

Based on a real
Alouette SA-318C cockpit
HELICO
helicopter training device
 |  |  |  |  |  |
|---|---|---|---|---|---|
 |  |
Helico is designed for Turkish Police Aviation. It is currently operating by Istanbul police aviation in a simulation centre also designed and built by Agronn.

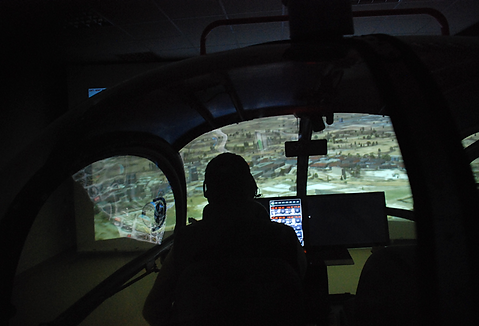

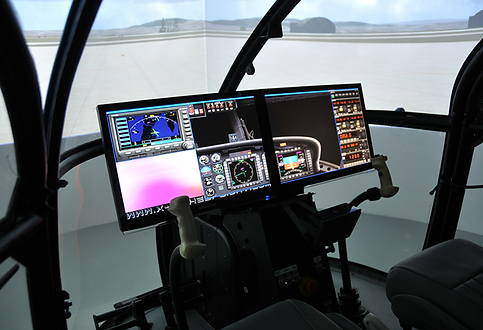

180º curved screen system with 3-channel projection gives a wide outside view around the cockpit. Cockpit panels are simulated by two 20” LCD display.
All original cockpit controls runs to command simulator and they all works coherently with the software.
Original active controls

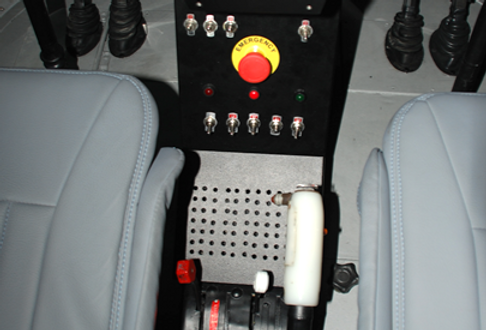

Switch panel
Dual Cyclic
Collective
Dual Rudder
Throttle
Seats
Original Leather Seats for Both Sides
Seat Vibration System
Display system
3-Channel Curved Projection System
Picture Size
width 785cm & height 225cm
width 25.75 feet & height 7.38 feet
view angle 180º
resolution 3x1920x1080
contrast 10000:1
brigthness 2500 ANSI lumens
Sound and communication system
Surround 5.1 audio system in cockpit
Intercom Captain & FO
Intercom Cockpit & Instructor Panel
Telephone line at instructor station
Master Switch
Master Avionics
Panel Lights
Engine Start Button
Cockpit Audio on/off
Side Lights on/off
Cockpit Light on/off
Ground Lights on/off
Air Conditioner on/off
Chart Light Also Available
Instructor station
20 Inches Single Monitor
Computer
Wireless Keyboard & Touchpad
Shelfs for Manuals
Control Desk
Ceiling Light
Intercom
Phone
Main Power on/off
220 Volts Power Outlet
Data Terminal for a Laptop
Functions
Flight Recording & Replays
Failures
Weather Conditions
(rain,wind,snow,cloud density etc.)
Real Time Weather Conditions
Time & Seasons
Airports
